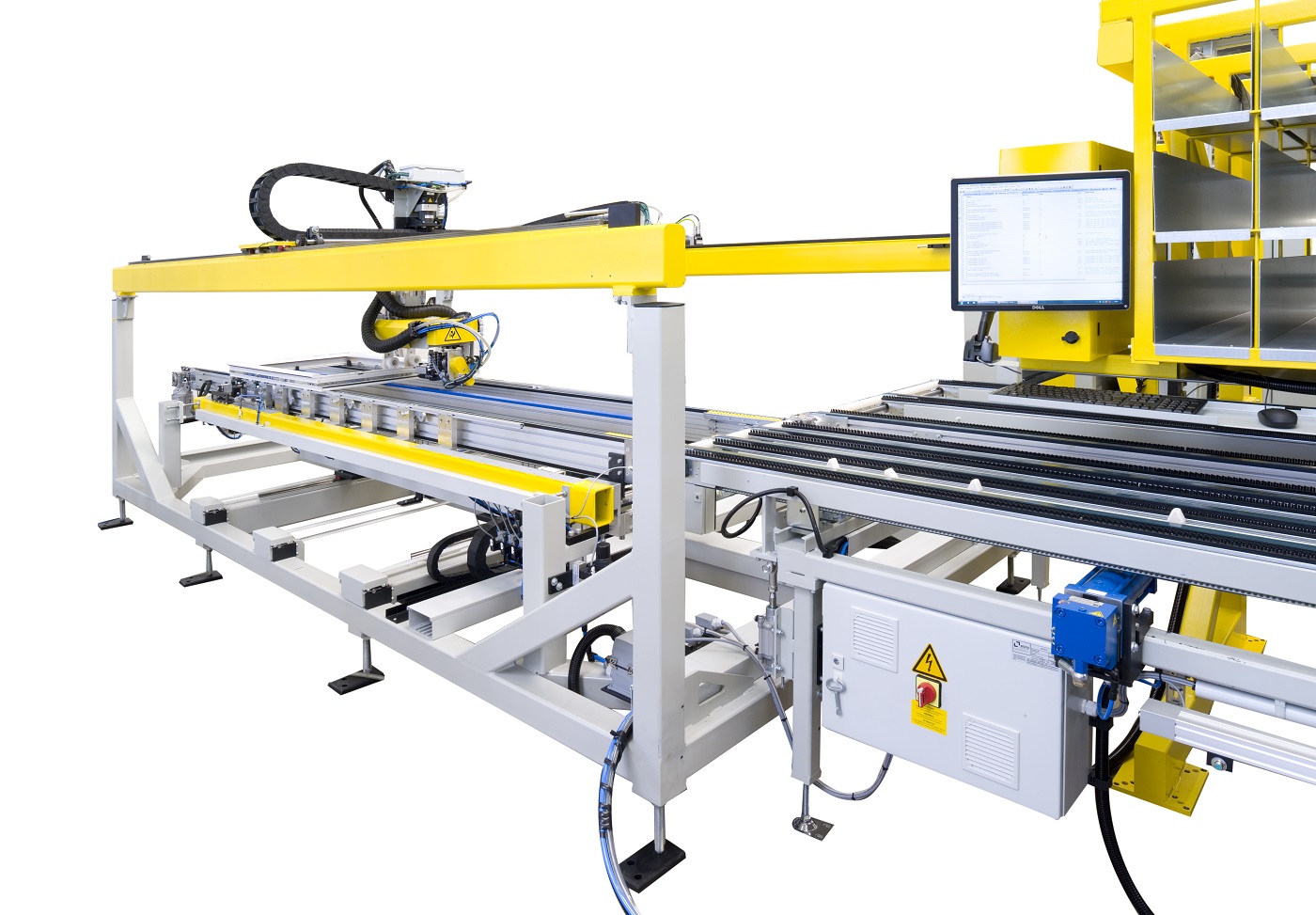

FBS-1S

PRODUCTS / Casement Hardware Assembly

FBS-1S

PRODUCTS / Casement Hardware Assembly

The Advantages

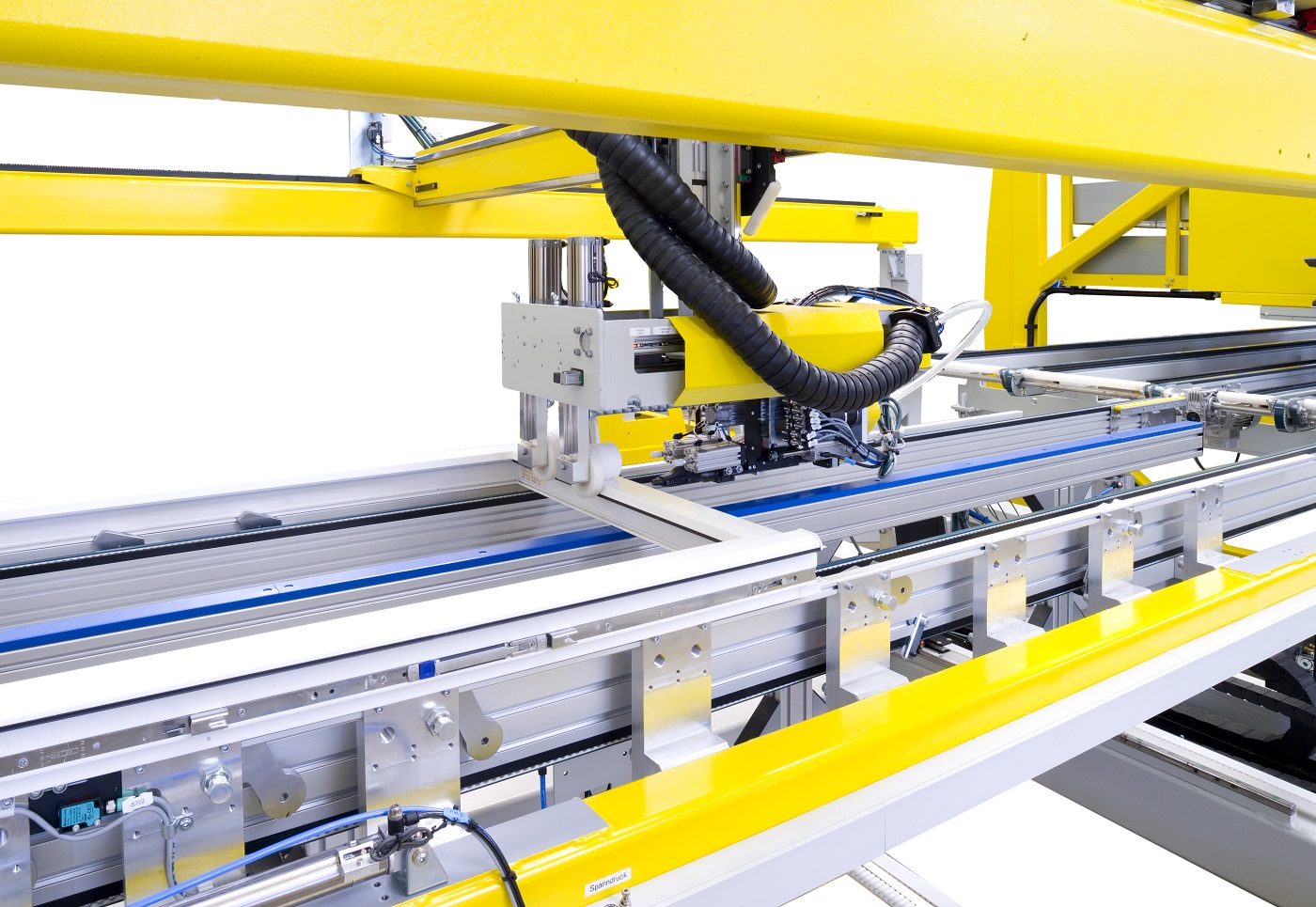

  • 1 electric screwing unit
  • Processing of up to eight different euro groove heights – independent of profile and fitting system
  • Maximum output through the use of highly dynamic modules and intelligent control technology
  • Gentle bolting of the sash corner bands
  • Integrated remote maintenance avoids the need for on-site service technicians
  • Integratable into existing production lines
  • Preassembly table for hardware with compartments for long hardware parts and corner deflection units
  • To ensure a continuous material flow in the production process, the sash cutter is folded in via a tensioning arm
  • Completely bolted sashes are automatically transferred orderly into a vertical element buffer

TECHNICAL DATA

Profile depthmin. 60 mm Profile depthmax. 100 mm* Profile view widthmin. 69 mm (for mullion profile 49 mm) Profile view widthmax. 130 mm / 150 mm* Euro groove heightmin. 30 mm Euro groove heightmax. 50 mm Width of casement rebatemin. 280 mm* Width of casement rebatemax. 1600 mm* Height of casement glass rebatemin. 280 mm Height of casement glass rebatemax. 2600 mm Width of casement glass rebatemin. 220 mm Height of casement glass rebatemin. 220 mm Weight of casementmax. 100 kg Cycle time<2 minutes (depending on type of fitting) Profile systemsPVC / PVC steel-reinforced profiles / composites
